$879.90

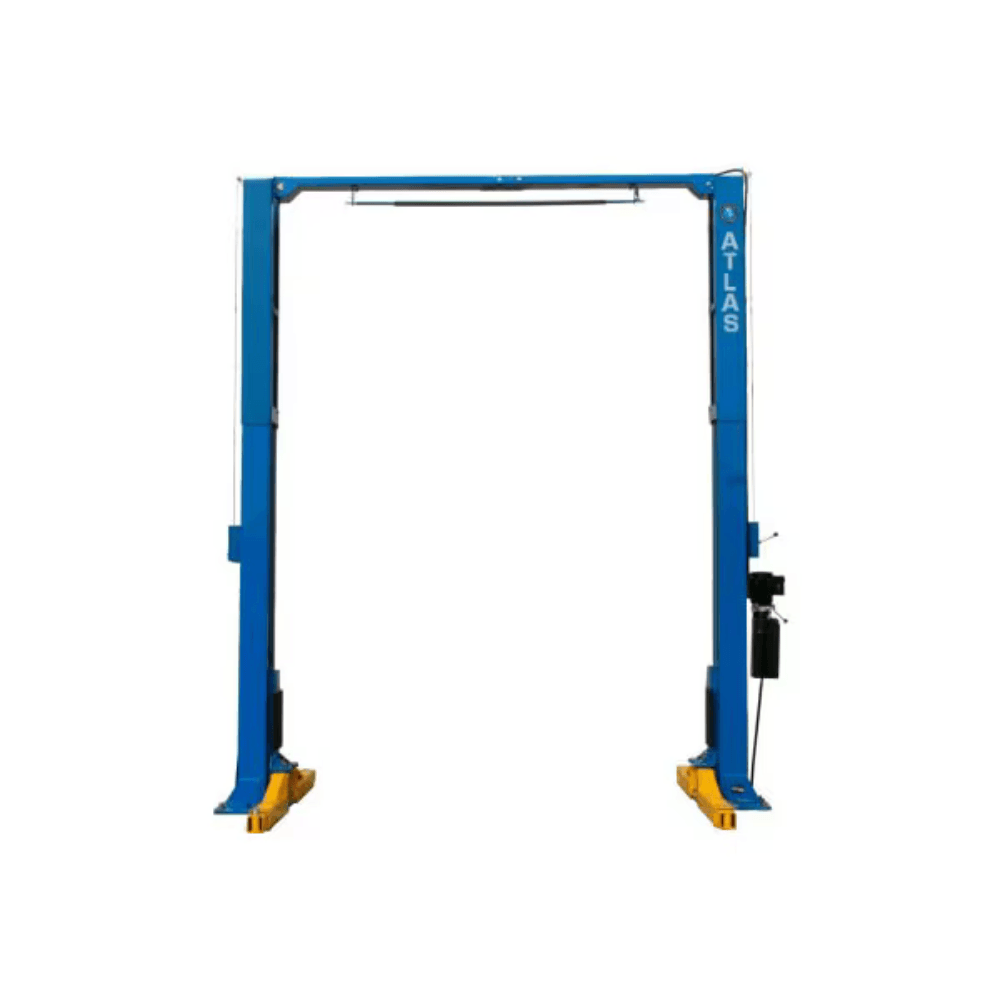

Atlas 15000 LB Capacity Overhead Two-Post Lift

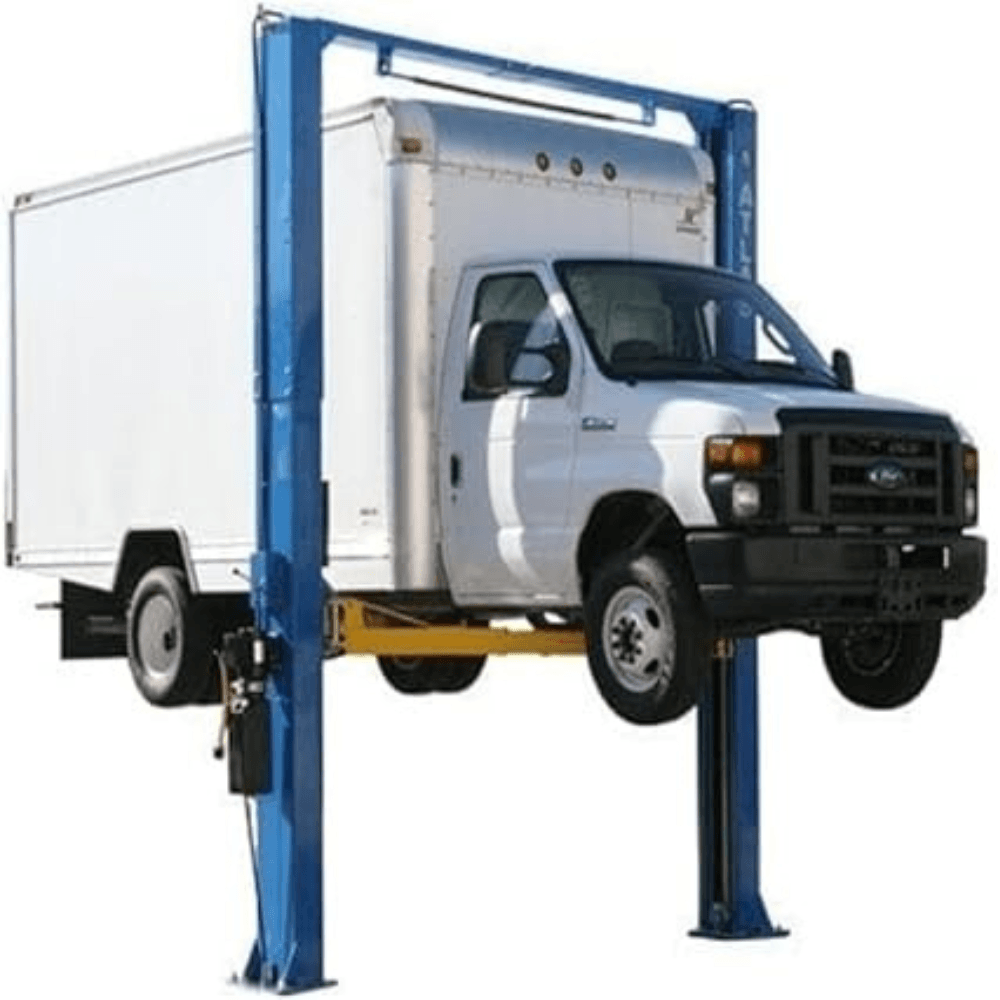

The Atlas 15000 LB Overhead Two-Post Lift is a heavy-duty, commercial-grade lift designed for extra tall and extra wide vehicle servicing. With a 15,000 lb. lifting capacity, this lift is perfect for large trucks, vans, and heavy-duty vehicles in professional automotive repair shops.
Its adjustable height settings (165″, 177″, or 150″ with extra cables) make it adaptable for various shop layouts, while its symmetric arms, direct-drive cylinders, and automatic arm restraints ensure efficiency, safety, and durability.
Key Features & Benefits
15,000 lb. Lifting Capacity – Handles large trucks, SUVs, and heavy-duty vehicles.
Extra Tall & Extra Wide Design – Provides ample clearance for oversized vehicles.
Adjustable Height Settings – Standard: 165″ (13′ 9″) or 177″ (14′ 9″). Special Low Height: 150″ (12′ 6″) (Requires purchase of extra cables).
Symmetric Arms – Offers even weight distribution for secure lifting.
Automatic Arm Restraints – Ensures arms stay locked in place during lifting.
“Padded” Shut-Off Bar – Prevents vehicle damage from excessive lifting height.
Door Guards on Carriages – Protects vehicle doors from scratches or dents.

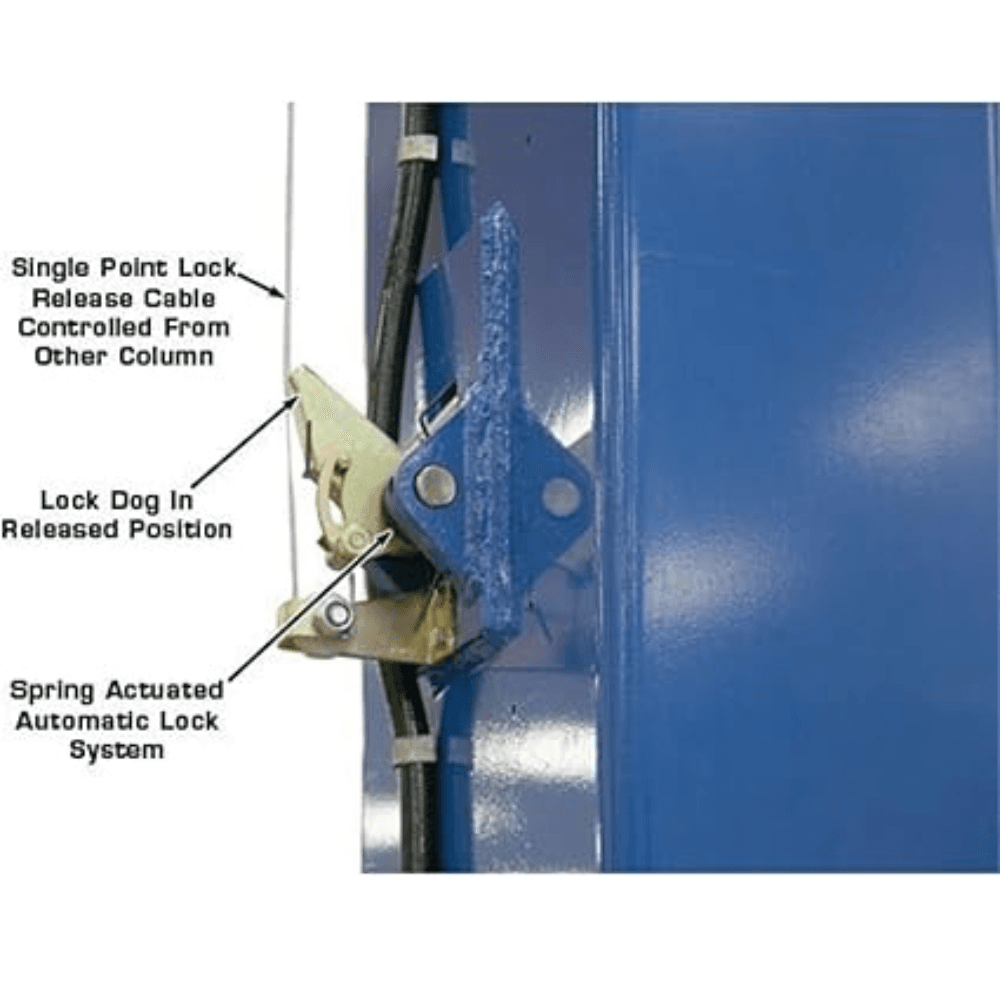

Single Point Lock Release – Simplifies operation by unlocking both columns simultaneously.

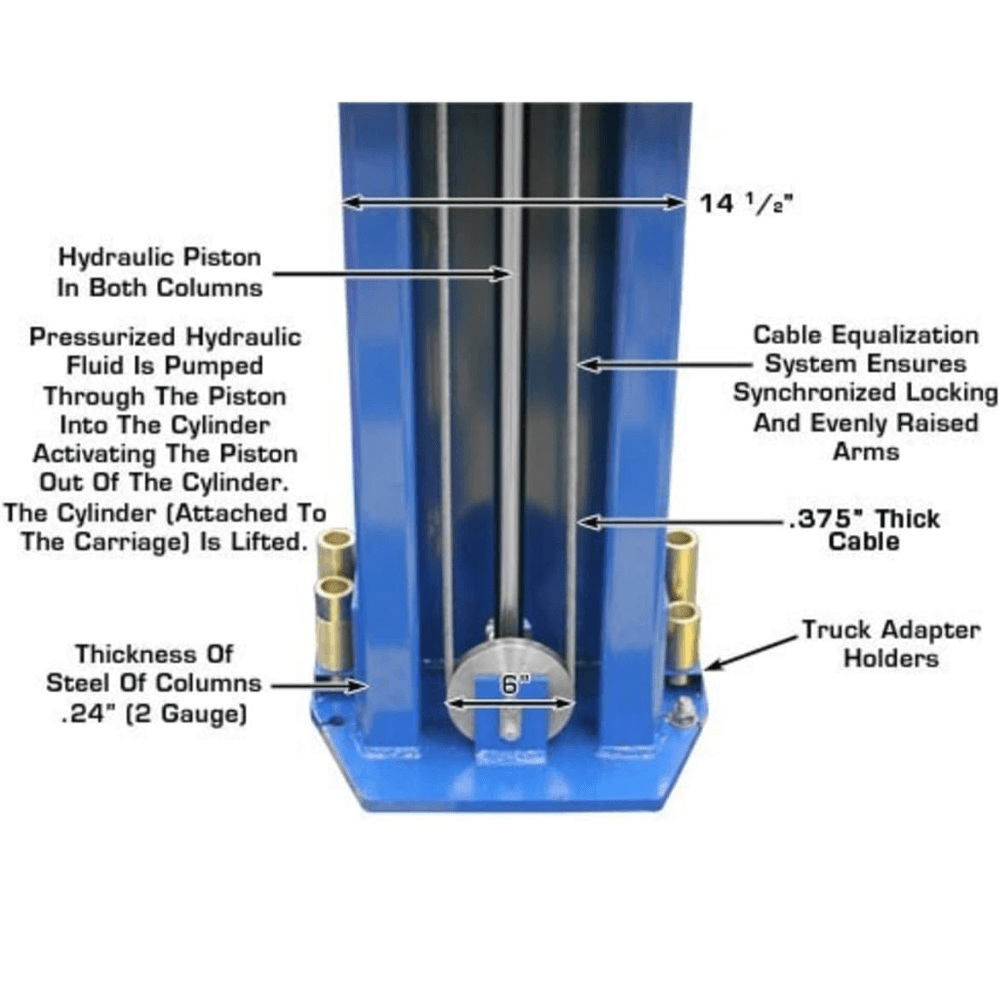

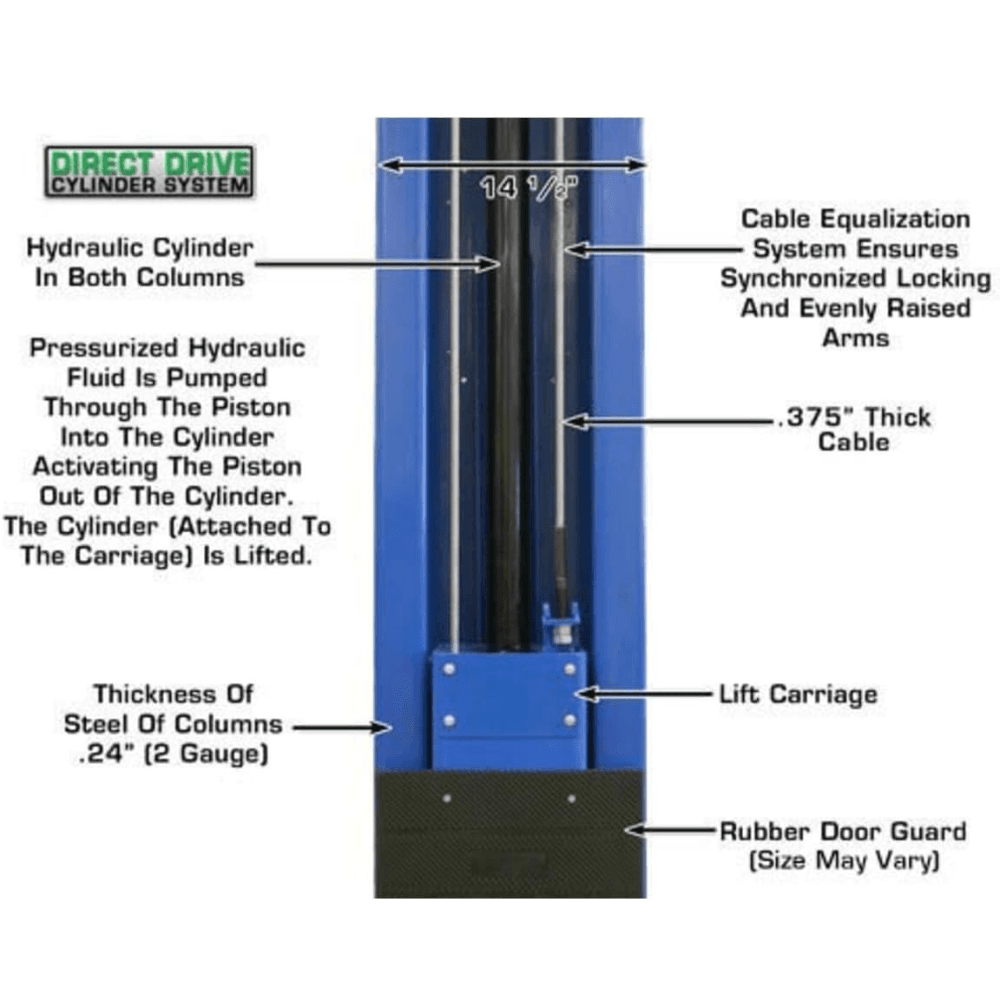

Direct-Drive Cylinders – Ensures smoother, more efficient lifting with fewer maintenance needs.
Powder Coat Finish – Enhances durability and corrosion resistance.
Free 12-Piece Truck Adapter Set – Expands lifting capabilities for various vehicle types.
Mounting Hardware Included – Provides everything needed for secure installation.
Technical Specifications
Specification
Measurement / Detail
Lifting Capacity
15,000 lbs.
Overall Height (Standard Settings)
165″ (13′ 9″) or 177″ (14′ 9″)
Special Height Setting
150″ (12′ 6″) (Requires Extra Cables)
Overall Floor Width
150 3/4″ (12′ 6 3/4″)
Outside Column Width
139 1/8″ (11′ 7 1/8″)
Inside Column Width
123 1/2″ (10′ 3 1/2″)
Drive-Thru Clearance
109 1/2″ (9′ 1 1/2″)
Maximum Lift Height (Without Adapters)
72 1/4″
Maximum Lift Height (With Adapters)
81″
Minimum Pad Height
7 1/4″
Column Size
7 1/2″ x 14 1/2″

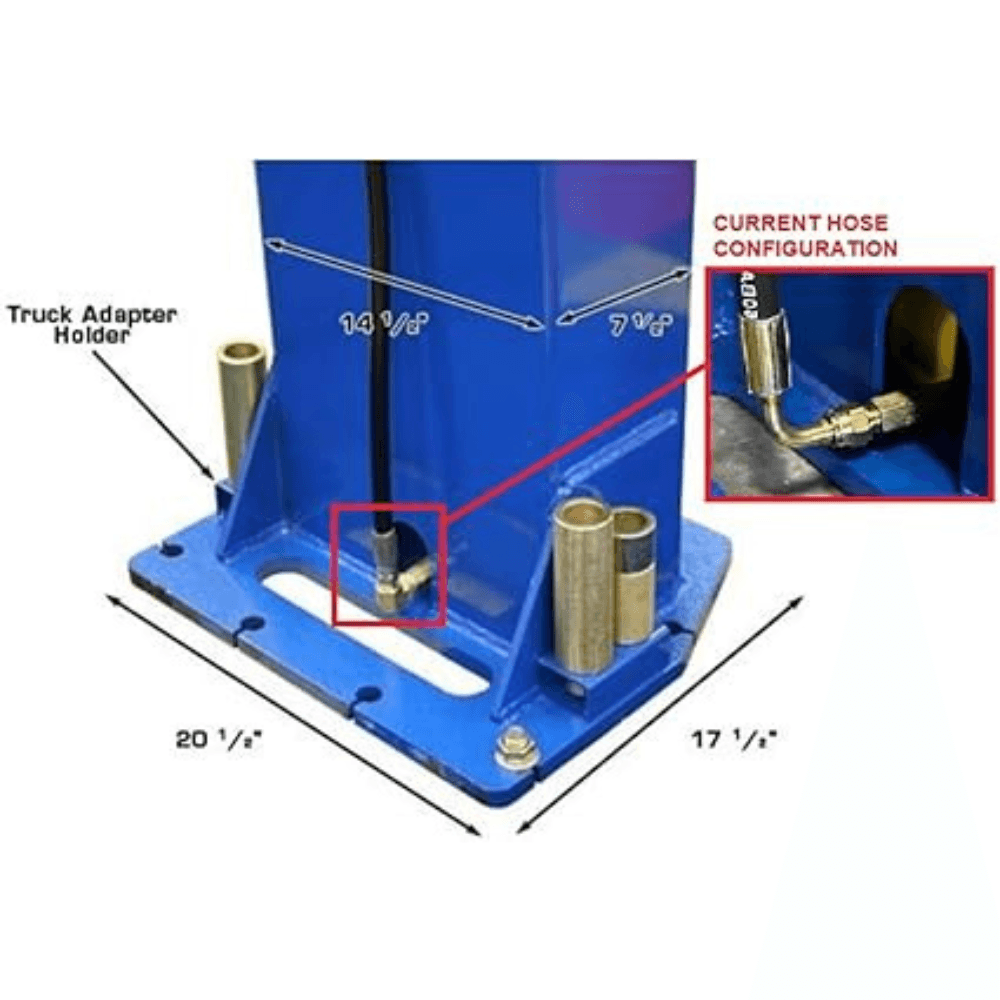

Base of Column
17 1/2″ x 20 1/2″
Column Steel Thickness
6mm
Arm Steel Thickness
6mm
Motor / Electrical Requirement
220V Single Phase, 30 Amp Breaker Required
Oil Requirement
3-5 Gallons AW32 or AW46 (Not Included)
Shipping Weight
2,490 lbs.
Adapter Heights
4 Each: 1.25″, 2.5″, 5″
Arm Hole / Adapter Peg Size
1.5″
Installation Requirements
Minimum 6″ thick, 3,000 psi concrete foundation.
13’7″ ceiling clearance required at lowest setting.
Why Choose the Atlas 15000 LB Overhead Two-Post Lift?
The Atlas 15000 LB is an excellent choice for commercial repair shops that need a durable, high-capacity two-post lift. Its extra tall and extra wide design, symmetric arms, and direct-drive hydraulic system provide exceptional lifting power and safety.
For heavy-duty vehicle maintenance, fleet servicing, and professional-grade lifting, the Atlas 15000 LB Overhead Two-Post Lift is the ideal solution!
