$1,329.95
‘

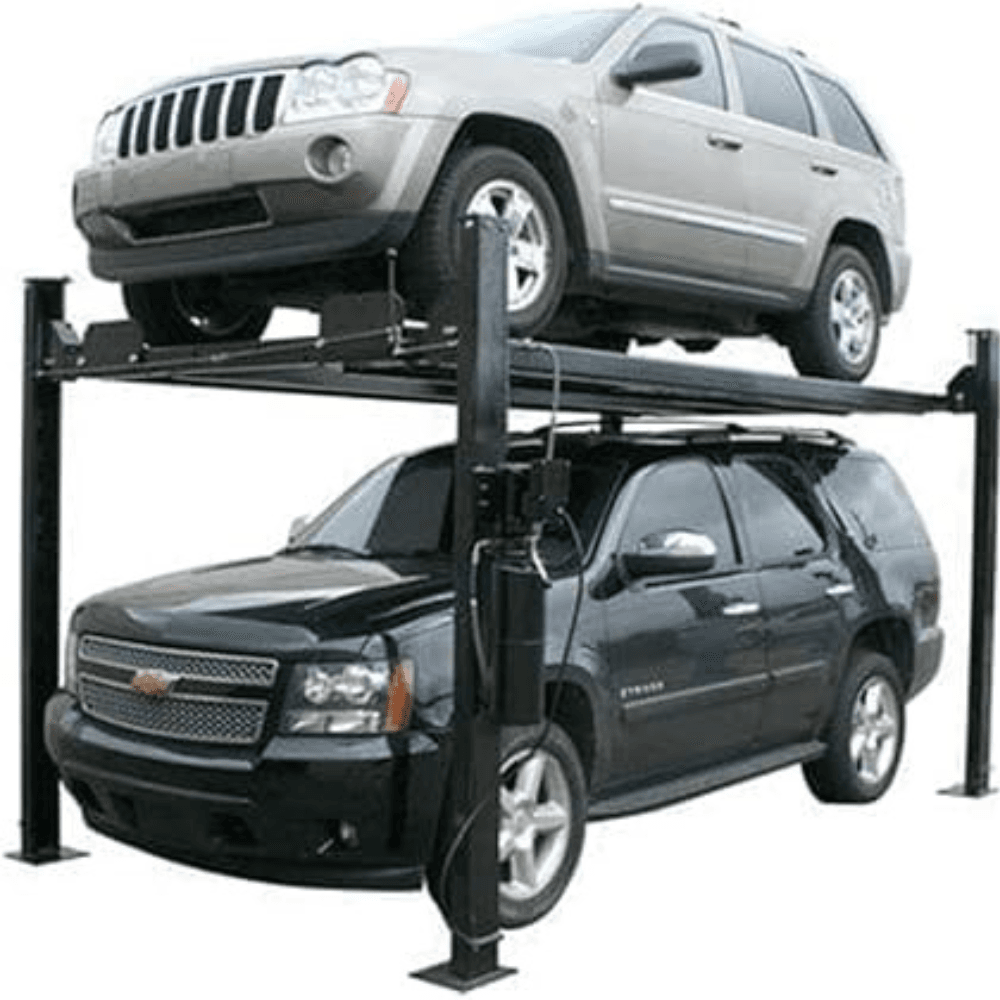

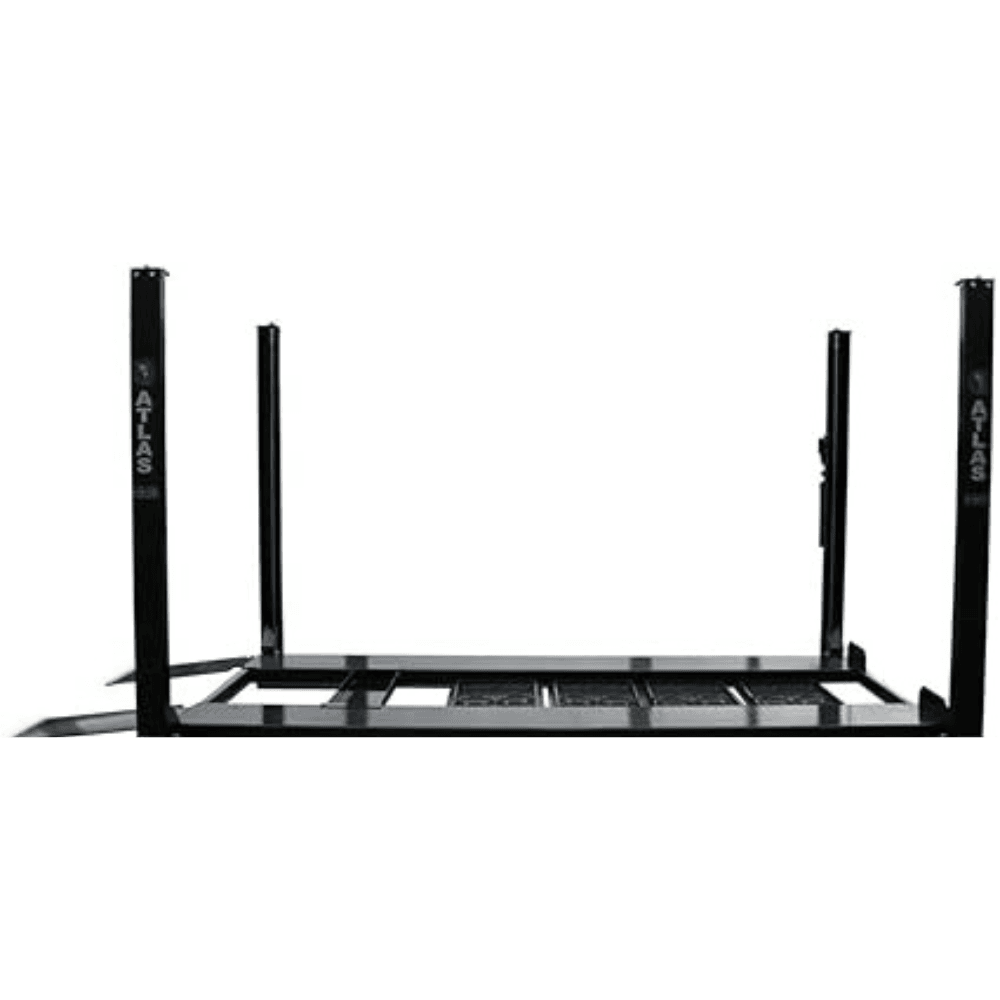

Atlas Garage Pro 8000 Four-Post Lift
The Atlas Garage Pro 8000 is a heavy-duty, 8,000 lb. capacity four-post lift, designed for homeowners, classic car enthusiasts, and restoration shops. This storage/service lift allows for easy vehicle maintenance and long-term storage, making it an ideal choice for maximizing garage space.
With its lock ladder column design, double-lock safety system, and single-point lock release, the Atlas Garage Pro 8000 ensures secure lifting and ease of use. This lift does not need to be anchored to the floor, making it a freestanding and portable option.
The inclusion of caster wheels, steel approach ramps, plastic drip trays, and a steel jack tray makes this lift one of the most feature-packed four-post lifts in its class.
Key Features & Benefits
8,000 lb. Lifting Capacity – Supports cars, light trucks, and SUVs.

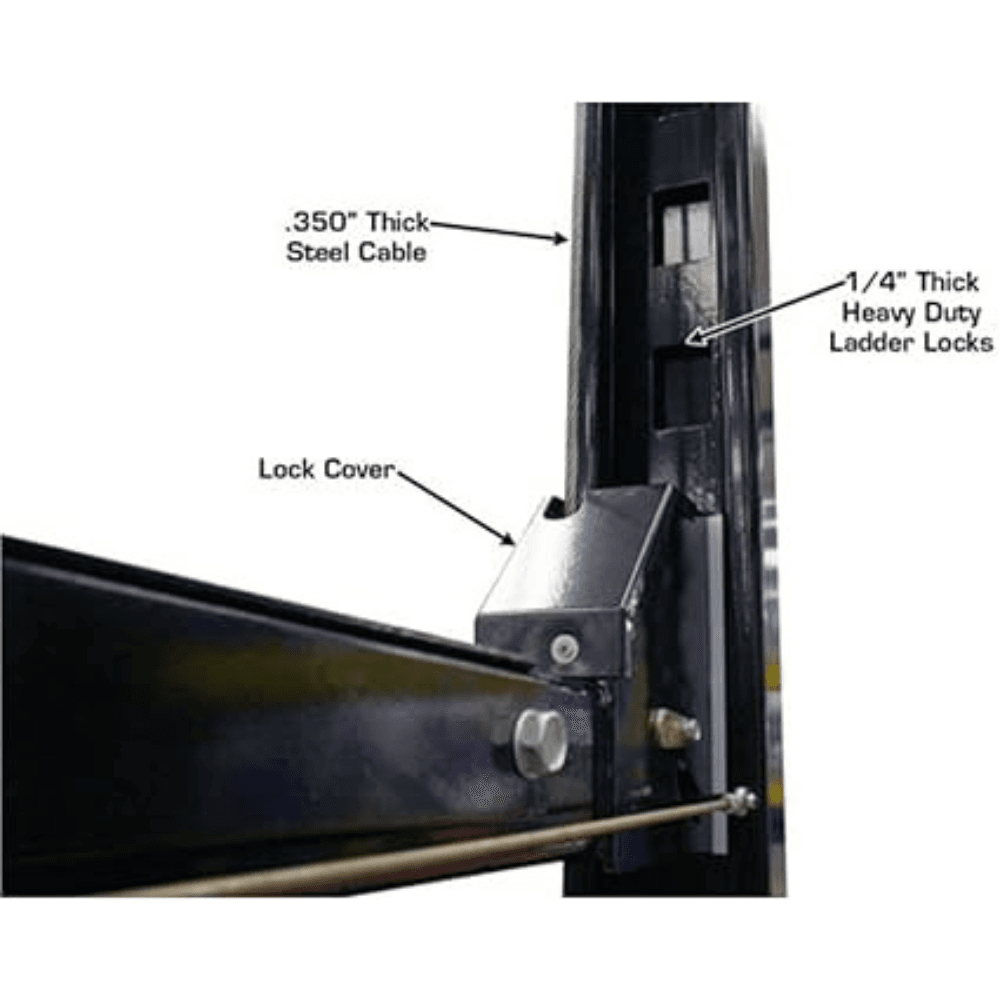

Lock Ladder Column Design – Provides infinite runway locking positions. Allows users to adjust the height to accommodate any vehicle. Similar system used in professional-grade lifts found in dealerships.
Double-Lock Safety System – Adds an extra level of security.

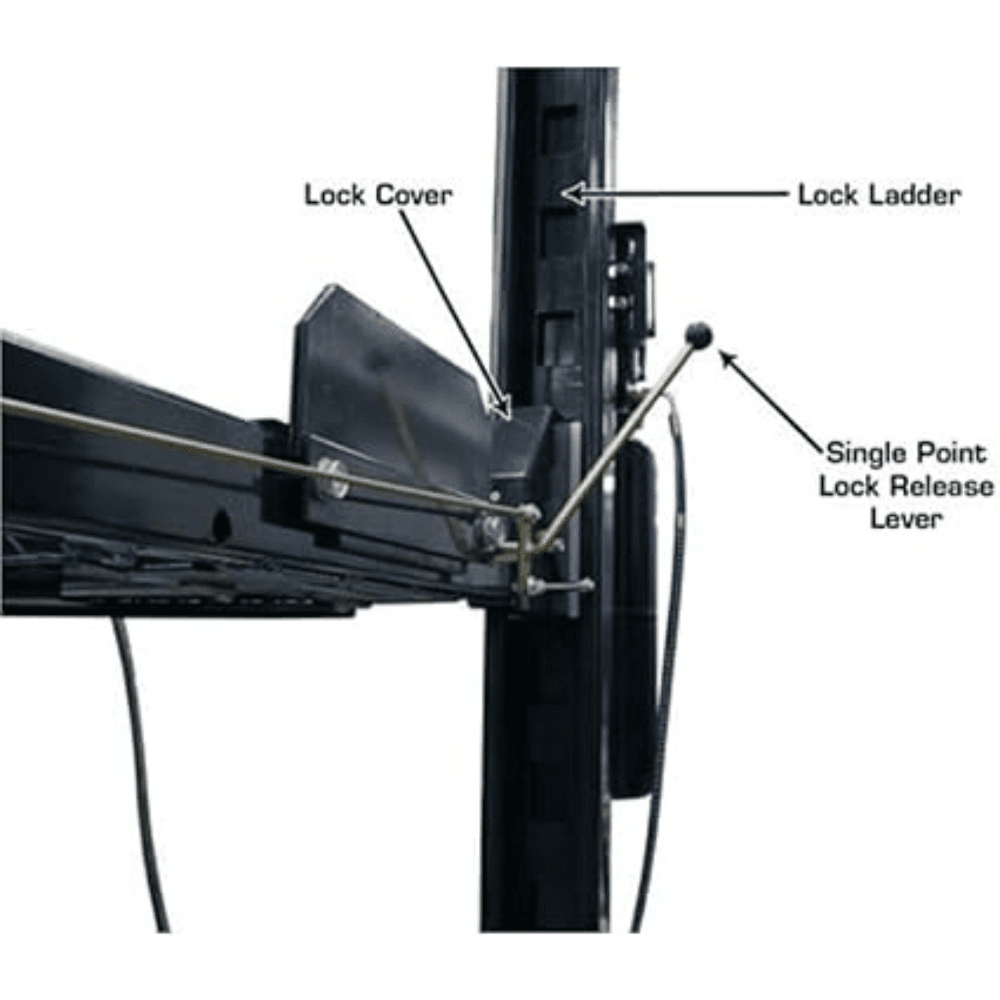

Single-Point Lock Release – Simplifies operation and safety lock disengagement.

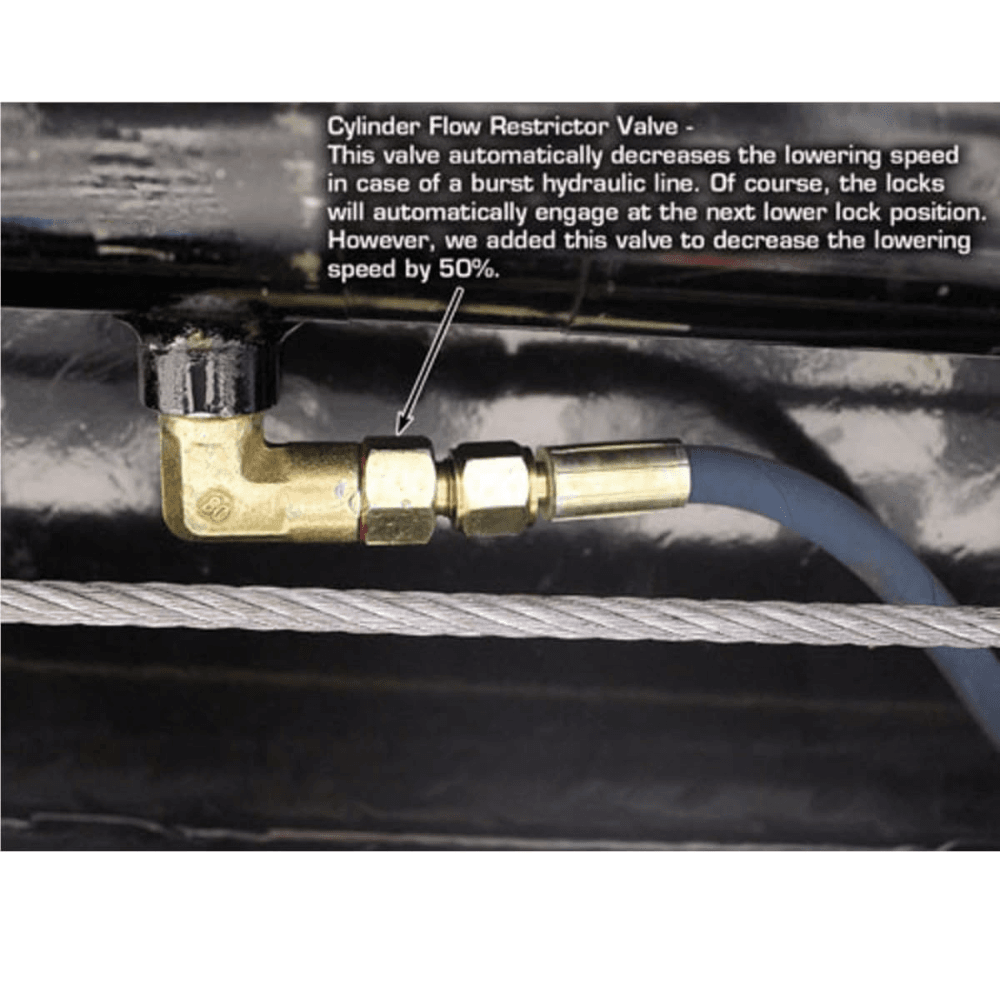

Flow Restrictor in Hydraulic System – Ensures controlled lowering for safety.
Zerk Fittings for Pulley Greasing – Enhances longevity and smooth operation.
Caster Kit with Polyurethane Wheels (Included) – Allows easy movement across floors.
Does Not Need to Be Anchored – Offers flexibility for placement and portability.
Easy Installation – Can be assembled in about four hours by two people.
Includes Accessories for Versatility – Steel approach ramps for easy vehicle loading; three plastic drip trays to catch fluids; steel jack tray for use with bottle jacks; rubber wheel chocks for additional security.
Atlas Powder Coat Finish – Protects against corrosion and wear.
2-Year Structural & 1-Year Hydraulic Warranty – Ensures long-term reliability.
Technical Specifications
Specification
Measurement / Detail
Lifting Capacity
8,000 lbs.
Lifting Height to Top of Runway
72″ (6′)
Clearance Under Runways
67 1/2″ (5′ 7 1/2″)
Height of Columns
83″ (6′ 11″)
Overall Width (Without Motor)
104 3/8″ (8′ 8 3/8″)
Overall Width (With Motor)
114″ (9′ 6″)
Overall Length (With Approach Ramps)
207 1/2″ (17′ 3 1/2″)
Overall Length (Without Approach Ramps)
175 1/2″ (14′ 7 1/2″)
Approach Ramp Length
37″ (3′ 1″)
Runway Width
21 1/4″ (1′ 9 1/4″)
Runway Length
165 1/2″ (13′ 9 1/2″)
Runway Thickness
4 1/2″
Width Between Runways
37 3/8″
Width Between Runway Rails
31 3/4″
Outside Runway to Outside Runway
74 3/4″ (6′ 2 1/4″)
Clearance Between Columns
94 1/2″ (7′ 10 1/2″)
Length Between Columns
157 1/2″ (13′ 1 1/2″)
Base of Column
10 1/8″ x 11 3/4″
Maximum Wheel Base
153 1/2″ (12′ 9 1/2″)
Drive-Thru Width (Outside of Tire to Outside of Tire)
80 1/2″ (6′ 8 1/2″)
Cable Diameter
.350″
Steel Gauge
6 Gauge (.1875″ / 3/16″ / 4.75mm)

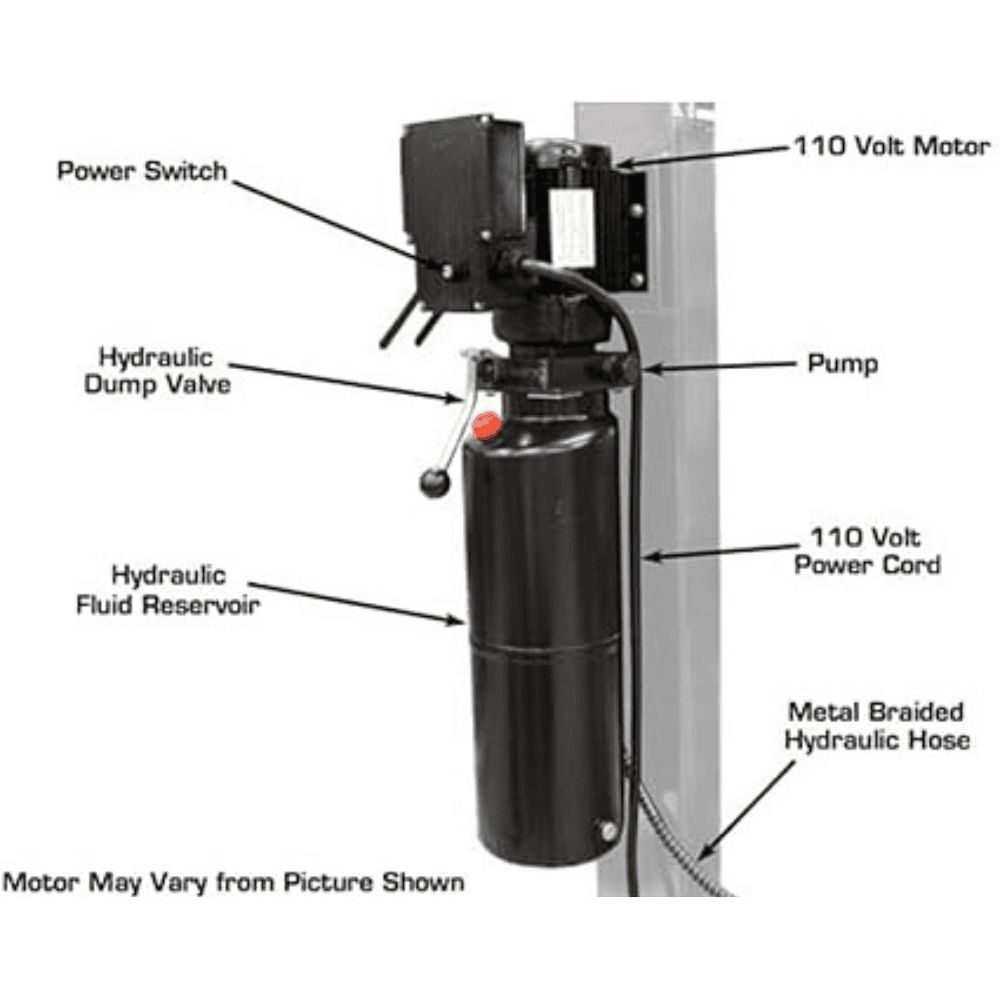

Motor
110V Electric Operation (30 Amp Breaker Required)
Shipping Weight
1,720 lbs.
Oil Requirement
3-5 Gallons AW32/AW46
Locking Positions Under Runway (+/- 2″ Height)
19 ½”
24″
25 ½”
30″
31 ½”
36″
37 ½”
42″
43 ½”
48″
49 ½”
54″
55 ½”
60″
61 ½”
66″
67 ½”
72″
Why Choose the Atlas Garage Pro 8000?
The Atlas Garage Pro 8000 is the perfect choice for vehicle storage and maintenance, offering professional-grade features at an affordable price. Its portable design, secure locking system, and durable construction make it ideal for homeowners and restoration shops looking for a high-quality four-post lift.
With included accessories, easy installation, and the ability to move freely without anchoring, the Atlas Garage Pro 8000 is a top-tier solution for maximizing your garage space!
